使用Docker Desktop安装kind
Install Docker Desktop on Mac
get docker desktop VM IP
e.g.
Install kubectl on macOS
Install kind on macOS
Creating a kubernetes cluster
get kubernetes cluster master IP
e.g.
安装Jenkins
Installing Jenkins in Docker
Customize the official Jenkins Docker image, by executing the following two steps:
Create a Dockerfile with the following content:
Build a new docker image from this Dockerfile, and assign the image a meaningful name, such as "myjenkins-blueocean:2.426.3-1":
docker build -t myjenkins-blueocean:2.426.3-1 .
Run your own myjenkins-blueocean:2.426.3-1 image as a container in Docker using the following docker run command:
get jenkins IP
e.g.
Unlocking Jenkins
使用jenkins
- jenkins提供多种任务模式,可以理解为不同语法的脚本(Jenkinsfile),包括freestyle project、pipeline、multi configuration pipeline等
- Jenkinsfile可以直接编辑文档,也可以通过UI生成,下一代UI blue ocean可以通过表单直接生成multi configuration pipeline类型的Jenkinsfile
- jenkins任务运行在所谓agent,有多种方式临时部署agent:docker container、kubernetes POD、node。如果将docker engine或者kubernetes cluster添加成cloud,貌似他们是以node方式部署agent,如何以container或者POD方式部署agent有待研究
e.g.

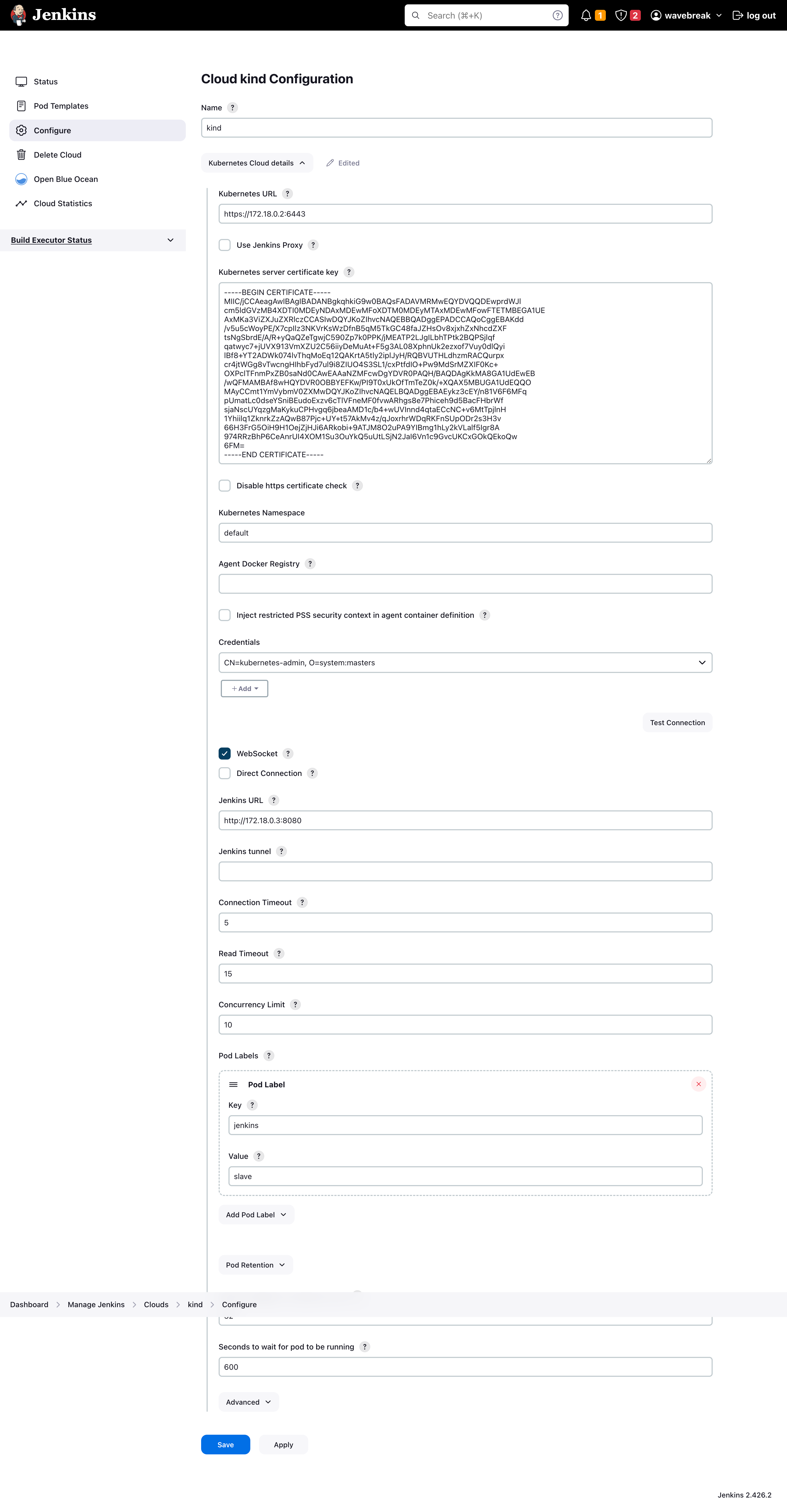

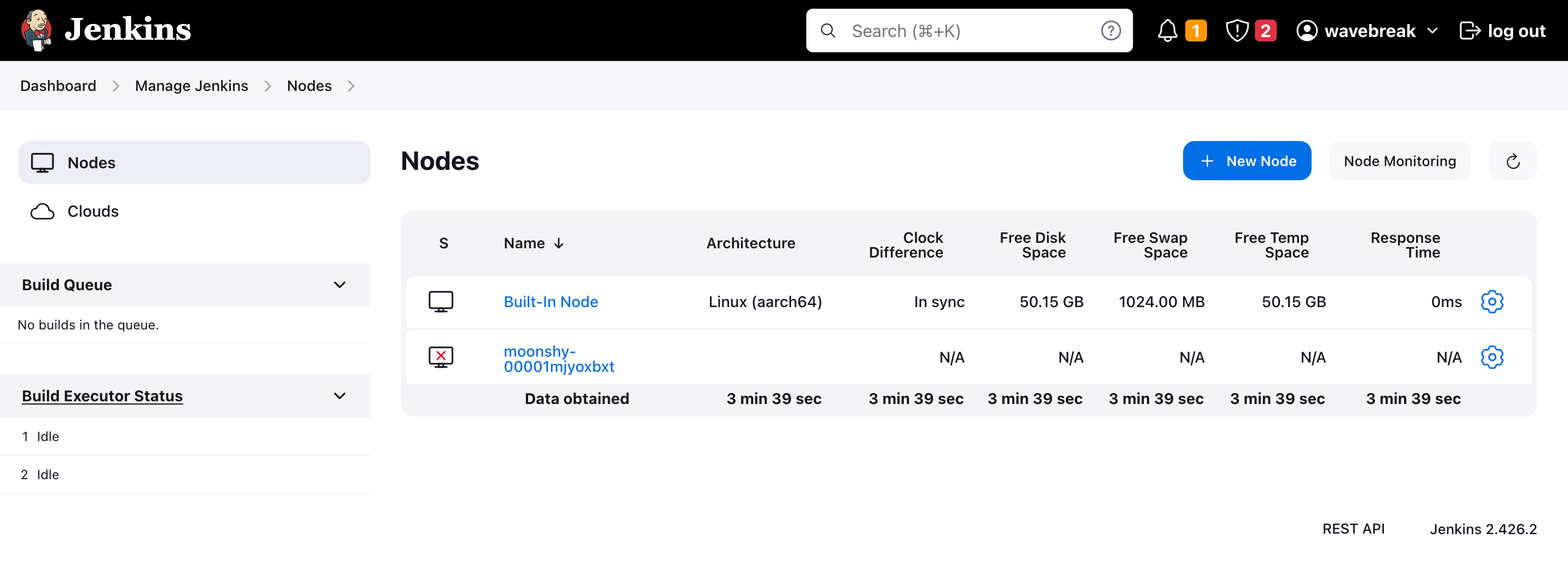

将kubernetes cluster添加成cloud
将docker engine添加成cloud
将docker engine添加成cloud这里有一个问题,macOS+docker desktop环境下,docker engine port无法通过daemon.json或者docker.service文件配置暴露,比较简单的一个办法是创建一个container将docker engine所在VM的port映射出来,比如我们创建一个IP为172.18.0.4的container:

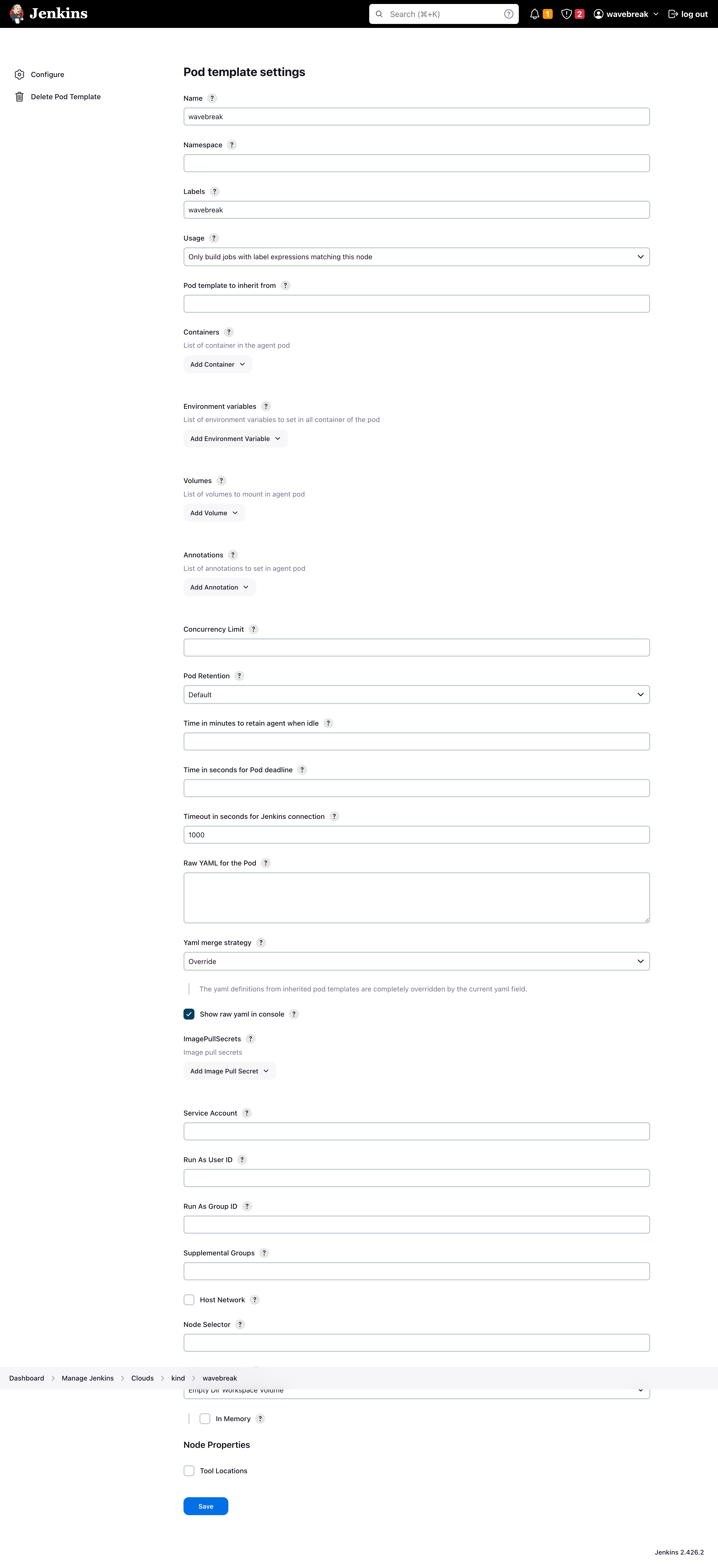

创建一个POD template(定义当需要一个agent时,如何启动一个node)

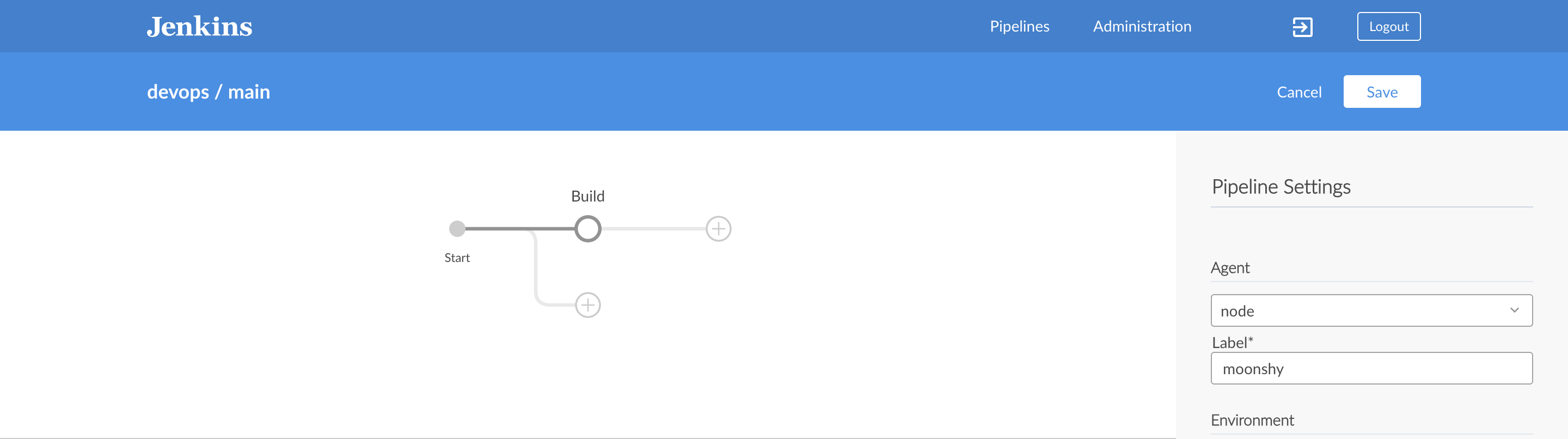

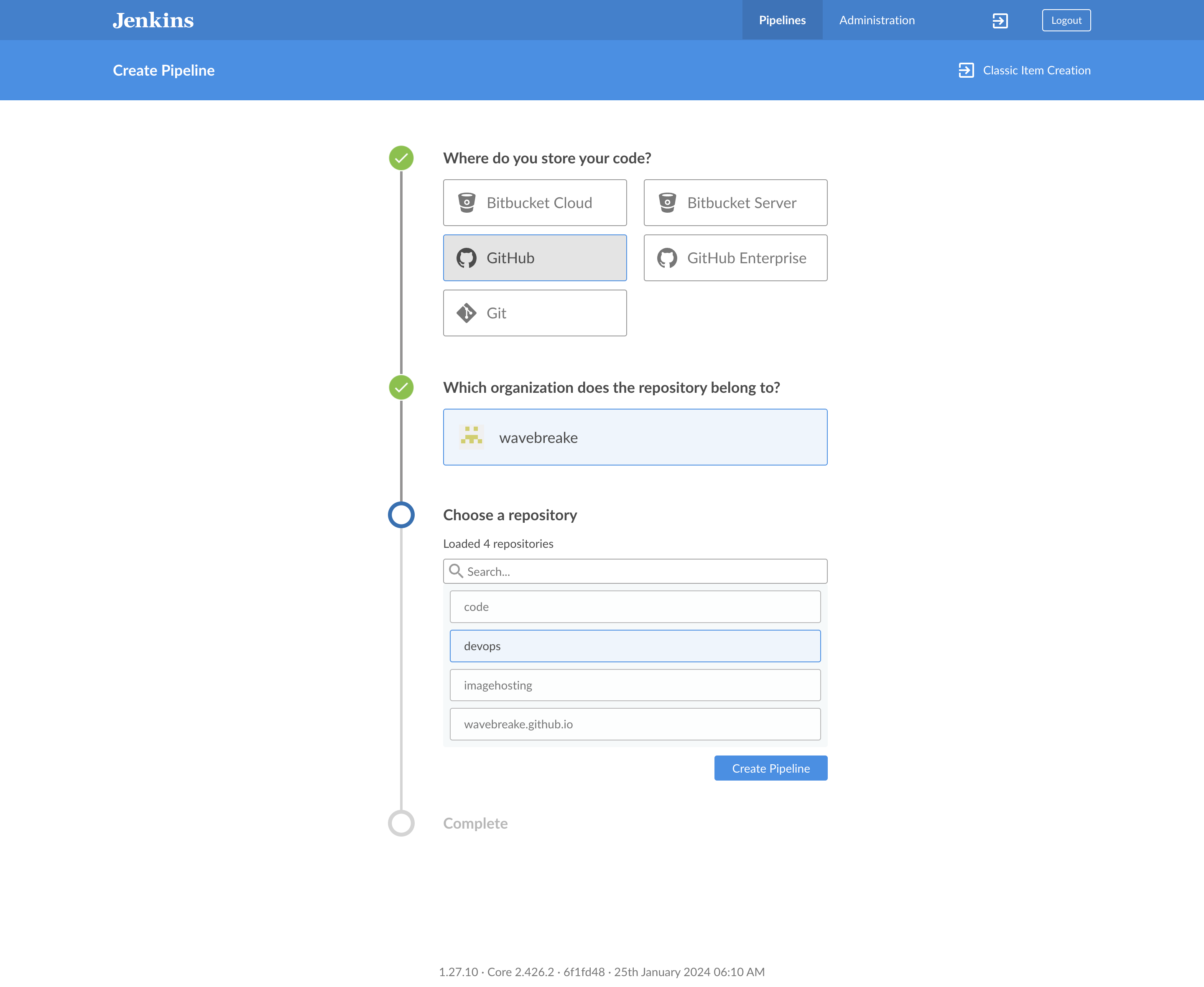

创建一个pipeline
创建一个step
运行pipeline
结果
